Titanium Grade 2 vs. Grade 5 in EDC Gear: Properties & Differences

Most product listings describe knife handles and flashlight bodies as "titanium" without specifying the grade. That single word covers a range of materials with different mechanical properties. The two grades most common in everyday carry are Grade 2 and Grade 5. They share a base element but differ in composition, hardness, machinability, and cost. Knowing which grade is in your hand changes how you evaluate wear patterns, weight, and long-term durability.

What Titanium Grades Mean

Titanium is graded by the American Society for Testing and Materials (ASTM) on a numbered system. Grades 1 through 4 are commercially pure (CP) titanium, meaning they contain 99% or more titanium by weight. The differences between CP grades come down to oxygen content, which directly affects hardness and ductility. Higher oxygen means harder metal and less flexibility.

Grade 5 is not commercially pure. It is an alloy designated Ti-6Al-4V, meaning it contains 6% aluminum and 4% vanadium by weight, with titanium making up the balance. The addition of these elements produces a material with fundamentally different mechanical behavior than any CP grade. Grade 5 is the most widely used titanium alloy in the world, accounting for more than 50% of all titanium consumed globally. Aerospace, medical implants, and high-performance sporting goods all rely on it.

In EDC, Grade 2 and Grade 5 dominate because they sit at the practical intersection of availability, machinability, and performance. Grade 1 is too soft for most tool applications. Grades 3 and 4 exist but see limited use in consumer products. Grade 5 is the ceiling for most production EDC work because exotic grades like Grade 23 (Ti-6Al-4V ELI) add cost without proportional benefit for pocket tools.

Grade 2: Commercially Pure Titanium

Grade 2 is the workhorse of the CP titanium family. It offers the best balance of strength, formability, and corrosion resistance among the pure grades. Its tensile strength sits around 345 MPa with a yield strength near 275 MPa. In hardness terms, it measures between 70 and 80 on the Rockwell B scale.

Those numbers translate to a metal that is strong enough for structural components but soft enough to machine and form without specialized equipment. Grade 2 cuts cleanly on standard CNC machines with less tool wear than alloy grades. It bends without cracking. It welds easily using standard TIG methods. For manufacturers producing titanium EDC tools at volume, these properties reduce production cost and cycle time.

The corrosion resistance of Grade 2 is superior to Grade 5. Commercially pure titanium forms a dense, self-healing oxide layer (TiO2) on its surface that resists attack from salt water, sweat, acidic compounds, and most common chemicals. This oxide layer regenerates if scratched or abraded, restoring protection within milliseconds of exposure to oxygen. For pocket-carried tools that contact skin and clothing all day, this resistance is practical, not theoretical.

The tradeoff is hardness. Grade 2 scratches more readily than Grade 5. A titanium flashlight body or knife handle in Grade 2 will show wear marks faster, particularly from contact with keys, coins, or other hard objects in a pocket. Some carriers view this as a negative. Others treat it the same way leather or copper patina works. The wear tells a story.

Grade 2 is also biocompatible. The same property that makes it the standard for surgical implants and dental hardware means it causes no skin reactions during prolonged contact. For a tool that rides against the body in a pocket for 12 or more hours a day, that matters. People with metal sensitivities who react to nickel or certain stainless steel alloys can carry Grade 2 titanium without issue.

Grade 5: Ti-6Al-4V

Grade 5 is a different class of material. The addition of aluminum and vanadium transforms the crystal structure from alpha phase (CP grades) to an alpha-beta configuration. This dual-phase structure is what gives Grade 5 its combination of high strength, moderate ductility, and fatigue resistance.

The numbers tell the story directly. Tensile strength exceeds 895 MPa. Yield strength sits above 828 MPa. Hardness measures between 30 and 36 on the Rockwell C scale, which places it in a different measurement range entirely from Grade 2. Grade 5 is roughly 2.5 times stronger than Grade 2 by tensile measurement.

In EDC applications, this strength advantage shows up in thinner cross-sections. A knife handle scale machined from Grade 5 can be milled thinner than a Grade 2 scale while maintaining the same structural rigidity. This allows tighter tolerances, slimmer profiles, and reduced weight in the finished tool. When a maker describes a knife as having a "refined" or "slim" titanium frame, Grade 5 is almost always the material enabling that design.

Grade 5 also resists surface wear better than Grade 2. The higher hardness means fewer visible scratches from pocket carry. The surface retains its machined or finished appearance longer. For bead-blasted, stonewashed, or anodized finishes, Grade 5 holds the treatment more durably because the base metal resists the micro-abrasion that degrades surface treatments over time.

The fatigue resistance of Grade 5 deserves specific mention. Fatigue failure occurs when a component is subjected to repeated loading and unloading cycles, such as a framelock bar flexing open and closed thousands of times. Grade 5 resists fatigue crack initiation far better than CP grades. A lock bar that maintains consistent lock tension after 10,000 cycles needs this property. Grade 2 would soften and deform under the same repeated stress.

The cost and manufacturing tradeoff is real. Grade 5 is harder on cutting tools. CNC cycle times are longer. Tool replacement rates are higher. Welding requires more precise heat control. These factors push production cost 30 to 50 percent above equivalent Grade 2 components. That cost reaches the buyer in the retail price of the finished product.

Weight Comparison

One common misconception is that Grade 5 is noticeably lighter than Grade 2. The density difference is minimal. Grade 2 measures approximately 4.51 g/cm3. Grade 5 comes in at approximately 4.43 g/cm3. The aluminum content in Grade 5 reduces density slightly because aluminum is lighter than titanium. In practice, the weight difference between two identical knife handle scales, one in Grade 2 and one in Grade 5, amounts to less than a gram. It is not perceptible in hand.

Both grades are approximately 45% lighter than steel at equivalent volume. That weight reduction is the primary reason titanium replaced steel and aluminum in premium EDC handles and frames. The grade selection affects strength and hardness, not weight.

Anodizing Behavior

Both grades anodize well, but the results differ. Titanium anodizing is not a dye process like aluminum anodizing. It works by building a controlled oxide layer on the surface that refracts light at specific wavelengths, producing color through interference rather than pigment. The voltage applied during anodizing determines the oxide thickness and therefore the color.

Grade 2 produces vivid, saturated anodized colors. The commercially pure surface creates a uniform oxide layer that refracts light consistently. Blues, purples, and golds come through bright and even. For makers and modders who anodize their own titanium pieces, Grade 2 is more forgiving because the surface composition is homogeneous.

Grade 5 anodizes well but can show slight color variation across the surface. The aluminum and vanadium content creates micro-level compositional differences that affect oxide formation. The result is sometimes a slightly less uniform color than Grade 2, particularly at the lower voltage ranges where subtle hue differences are more visible. At higher voltages producing greens and pinks, the difference is less noticeable. Most production anodized EDC tools in Grade 5 look consistent to the naked eye. The variation becomes relevant primarily for custom work where exact color matching across multiple parts matters.

Where Each Grade Appears in EDC

Knowing which components typically use which grade helps when evaluating a tool's construction.

Grade 2 common applications: pocket clips, spacers, backspacers, standoffs, screws, lanyard tubes, body tubes on flashlights, and lower-cost knife handle scales. These are components where corrosion resistance and formability matter more than maximum hardness. Pocket clips in particular benefit from Grade 2 because the clip needs to flex repeatedly without fatiguing or cracking. The higher ductility of Grade 2 handles this cyclic loading better than Grade 5.

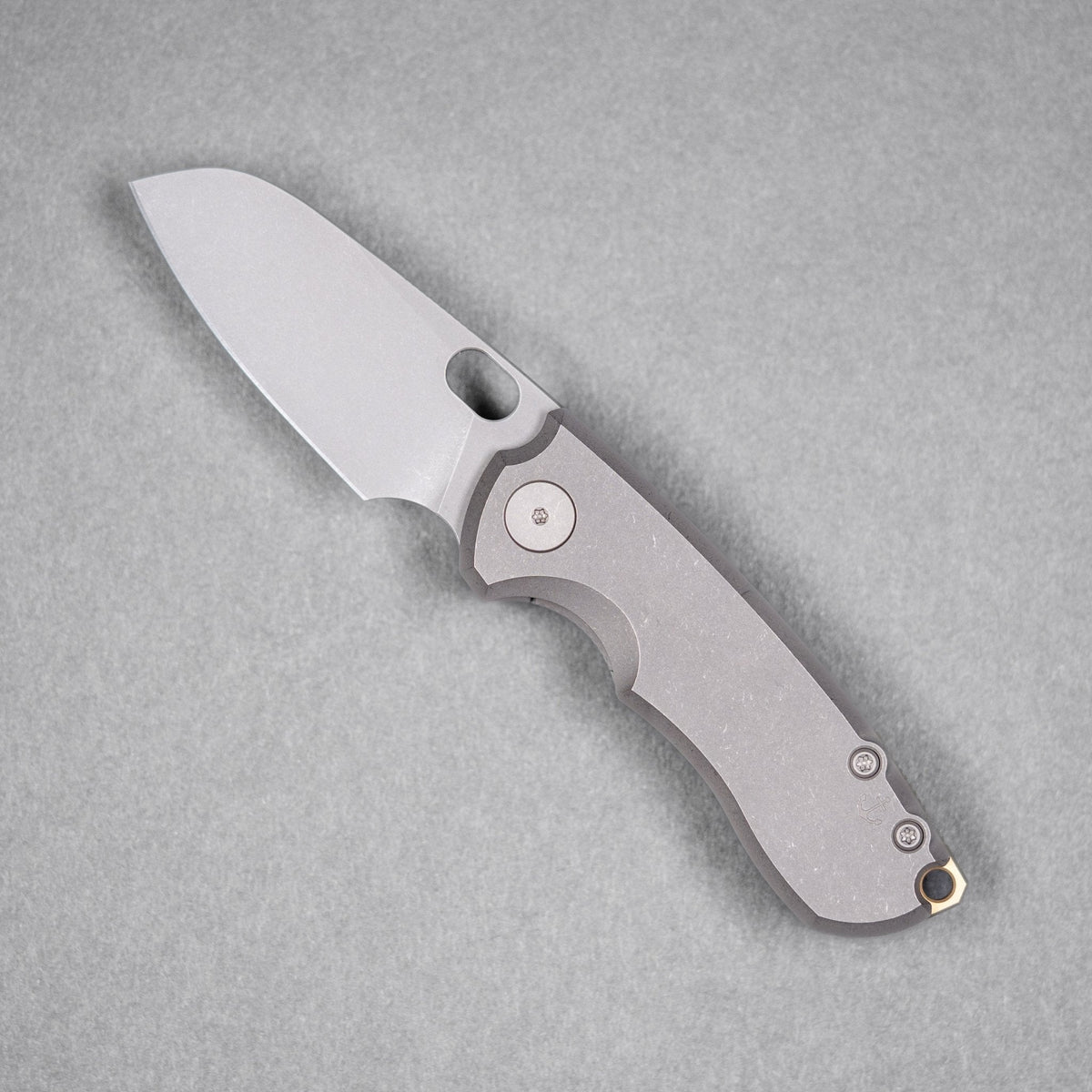

Grade 5 common applications: knife handle scales on framelock and linerlock folders, lockbar inserts, pivot hardware on premium knives, multi-tool frames, and high-end flashlight bodies. These are structural components where strength-to-weight ratio determines the design envelope. A framelock knife places the full locking force on the titanium scale. Grade 5 handles that repeated stress without deforming over thousands of open-close cycles.

Some tools use both grades in the same assembly. A knife might have Grade 5 handle scales with Grade 2 hardware (clip, standoffs, pivot collar). This is practical engineering, not cost cutting. Each component gets the grade that serves its function best.

How to Identify the Grade

Most manufacturers list the titanium grade in their specifications. "6Al-4V" or "Ti-6-4" indicates Grade 5. "CP titanium" or "commercially pure" indicates Grades 1 through 4, with Grade 2 being the most likely candidate. If a listing says only "titanium" without qualification, the component is more likely Grade 2 or another CP grade, since Grade 5 is a selling point that manufacturers tend to specify.

The feel in hand offers subtle clues but nothing definitive. Grade 5 feels slightly harder when tapped against a surface. Grade 2 may show fine scratches more quickly during carry. Neither test is reliable enough for identification. The specification sheet is the only definitive source.

A magnet test does help rule out fakes. Titanium in any grade is non-magnetic. If a pocket clip or handle responds to a magnet, the material is not titanium regardless of what the listing claims.

Weight offers another rough check. Titanium is noticeably lighter than stainless steel at the same size. A titanium handle scale that feels as heavy as a steel one warrants suspicion. Density is not a precise field test, but it catches obvious substitutions when combined with the magnet check.

Choosing Between Grade 2 and Grade 5

The choice depends on what the tool needs to do and what the carrier values.

Grade 2 is the right pick when corrosion resistance is the priority, when the component needs to flex or bend, when budget matters, or when the carrier plans to anodize the piece and wants the most vivid color output. A pocket clip, a beater flashlight for marine environments, or a budget-friendly titanium handle all serve well in Grade 2.

Grade 5 is the right pick when structural strength is the priority, when thin cross-sections are needed, when scratch resistance matters for aesthetics, or when the component bears repeated mechanical load. A framelock scale, a premium knife handle designed for minimal thickness, or a multi-tool frame that must resist flexing under pry loads all call for Grade 5.

Neither grade is universally better. A Grade 2 pocket clip on a Grade 5 frame is a considered design choice. A full Grade 2 knife is not inferior. It is a different set of tradeoffs optimized for different priorities. Reading the spec sheet and knowing what each grade delivers is what separates an informed purchase from a guess.

The titanium designation on a product page is not decoration. It is a material specification with measurable consequences for how the tool performs, ages, and holds up under daily use. Grade 2 and Grade 5 are both excellent materials. They serve different roles in the same ecosystem, and the best EDC tools put each one where it belongs.
